| Code | 669157 | Type | 30mm Coaxial Cube Accessories | |
| Material | 6061-T6 aluminum alloy | Surface Treatment | Black anodization | |
| Positioning Pins | Ø2.37mm6.5mm / 2 pieces | Center Hole Specification | SM1 Through Hole | |
| Included Countersunk Hex Screws / Quantity | M36 / 2 pieces | Included Round Head Hex Screws / Quantity | M3*5 / 4pieces | |
| Included Washers / Quantity | M3 / 4 pieces | Cube Width for Clamping | 42mm | |
| Mounting Hole Specification |
M3 |
Traders City price 29.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Compatible with 30 mm coaxial cubes
Center with Ø26.4 mm through hole
Can clamp cubes with widths of 42 mm and 55 mm

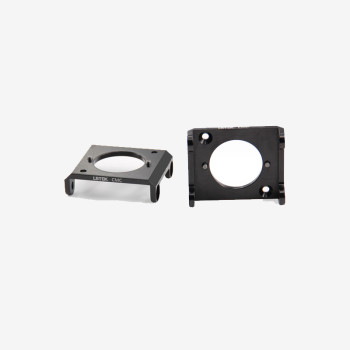

The LBTEK 30 mm coaxial cube connector is compatible with 30 mm coaxial cubes, and features a Ø26.4 mm through hole at the center, designed to connect two coaxial cubes. Two Ø2.37 mm * 6.5 mm positioning pins ensure alignment between the center hole and the SM1 threaded hole of the coaxial cube. The CMC connector can clamp cubes with a width of 42 mm, while the CMC1 connector can clamp cubes with a width of 55 mm.
The coaxial cube connector comes with 2 countersunk hex screws M36, 4 round head hex screws M35, and 4 flat washers for M3 screws.
