| Code | 669156 | Type | 30mm Cage Cube Accessories | |
| Material | 6061-T6 aluminum alloy | Surface Treatment | Black anodization | |
| Thread Specifications: | M3/M4 | Pitch/Yaw Angle Accuracy | 0.7° per turn | |
| Included Accessories | 1 × 2.0mm Wrench | Pitch/Yaw Angle | ±4° | |
| Z-Axis Travel | 2.8mm |
Traders City price 107.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Compatible with both free space and cage systems
Provides ±4° pitch/yaw and 2.8 mm adjustable Z-axis travel
Works with accessories like CM-3TC and CM-3TP

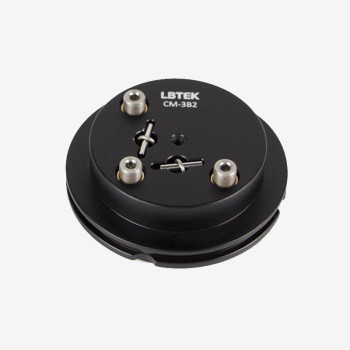

The LBTEK 30 mm Cage Prism Platform can be installed in a 30 mm cage cube system. Equipped with three M5×0.25 adjusters, it offers ±4° pitch/yaw and 2.8 mm displacement along the Z-axis. The base features M4 threaded holes for use in free space, while the platform includes M3 and M4 threaded holes for mounting mechanical components. It can be used with CM-3E and CM-3T cage cubes for integration into cage systems.
Note: The threaded components should be adjusted within the travel range. Avoid excessive adjustments to prevent separation of the adjuster and bushing.
