| Code | 669152 | Type | 30mm Cage Cube Accessories | |
| Material | Black anodized aluminum alloy | Compatible Mounting Holders | Square plate, round plate, beam splitter cube mount | |
| Bottom Support Thread Specification | M4 | Platform Thread Specifications | M3, M4 | |
| Pin Hole Specifications | Ø2.5mm, hole spacing 10mm |
Traders City price 24.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
The platform features four M4 threaded holes and seven M3 threaded holes
Equipped with two locating pin holes for precise positioning with connected components
The bottom center has an M4 threaded through hole for support

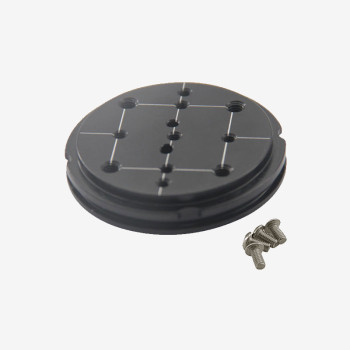

The LBTEK Rotatable Base Plate CM-3B1 is mounted on top or bottom of the 30 mm Cage Cube CM-3E/CM-3T, allowing for free rotation within the cube. The rotation can be locked at the desired position using the included M3 screws. The platform features M3 and M4 threaded holes for mounting holders or other installation brackets. The purchase includes four M3×4 round head hex screws.
