| Code | 669147 | Type | 30mm Cage Cube Rotator | |
| Material | 6061-T6 aluminum alloy | Surface Treatment | Black anodization | |
| Rotation Scale Accuracy | 1° | Fine Adjustment Accuracy | 5 arcminutes | |
| Threaded Hole Specifications/Quantity |
M4 (8), M3 (5) |
Rotation Angle | 360° continuous | |
| Locking Screw Specifications |
M4 screws |
Included Accessories | 2mm Hex Wrench, 1 pc |
The platform allows for pitch, tilt, and height adjustment
360° manual rotation with ±7° fine adjustment driven by a micrometer
Locking screws can secure both manual and micrometer-driven positions
Compatible with 30 mm cage cube accessories
Laser-engraved scale with 1° graduations and a 5 arcminute vernier scale

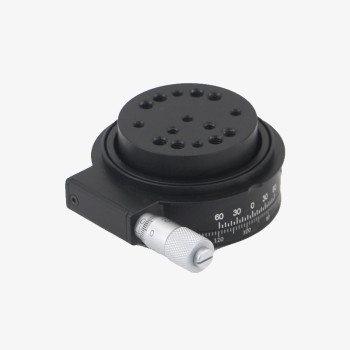

The LBTEK 30 mm Cage Cube Rotator CCRM-1A is compatible with the 30 mm cage cube system. It is mounted on top or bottom of the cage cube CM-3E/CM-3T using the CM-3B1A adapter, allowing for 360° free rotation. Additionally, the platform features a micrometer-driven precision rotation with a ±7° range. It also has laser-engraved 1° graduations and a 5 arcminute vernier scale for fine adjustments. The platform's base includes three adjustable screws, enabling pitch, tilt, and height adjustments, allowing for precise control of optical component positioning once mounted on the 30 mm cage cube system.
