| Code | 669140 | Type | 60mm Cage Rotating Quick-Release Mount | |
| Material | 6061-T6 aluminum alloy | Surface Treatment | Black anodization | |
| Maximum Optic Thickness | 8.5mm | Compatible Optic Diameter | Ø50.8mm | |
| Compatible System |
60mm cage system |
Rotation Range | 360° |
Compatible with 60 mm cage system
360° adjustable relative to the optical axis
Top-access flexible rod clamping for easy operation
Holds optics with Ø50.8 mm diameter

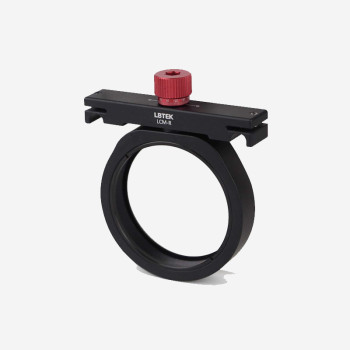

The LBTEK LCM-R Mount is designed for 360° manual rotation of optics within a 60 mm cage system. Using the included retaining ring, it supports optics up to Ø50.8 mm with a maximum thickness of 8.5 mm. The LCM-R employs a flexure clamp with M3 locking screws, allowing quick installation without removing cage rods. By loosening the M3 screws on both sides, the mount can be quickly inserted or removed from the cage system. The red top knob can be rotated by hand via its knurled surface or using a 5 mm hex wrench, while an M3 side screw locks the rotation. The knob features engraved 5° interval markings for angle indication.
