| Code | 669139 | Type | 60mm Cage Alignment Plate | |
| Center Hole Diameter | Ø1.5mm | Applicable Wavelength Range | 700nm – 1600nm | |
| Activation Light Power Density (Fluorescent Lamp) | 3.82μW/mm² @ 980nm; 65 μW/mm² @ 1550nm | Activation Light Power Density (Dark Environment) | 0.85μW/mm² @ 980nm; 5.7 μW/mm² @ 1550nm | |
| Coating Material |
Up-conversion fluorescent material |
Base Material | 6061-T6 aluminum alloy | |
| Coating Thickness |
700μm |
Coating Area | Ø13mm | |
| Base Surface Treatment |
Black anodization |
Compatible Cage System | 60mm |
Traders City price 44.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Coating Material: Up-conversion fluorescent material
Base Material: 6061-T6 aluminum alloy
Applicable Wavelength Range: 700 nm – 1600 nm
Compatible Cage System: 60 mm

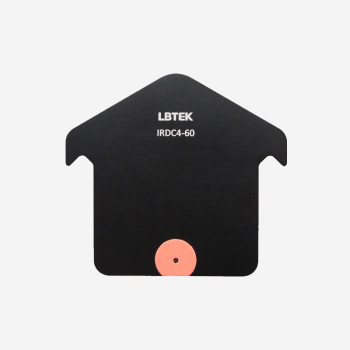

The LBTEK 60 mm Cage System IR Alignment Plate is a quick-insert infrared alignment tool. Its surface is coated with a Ø13 mm circular IR-sensitive layer for detecting infrared light, and it features a Ø1.5 mm central through hole for aligning the cage system center. This product provides convenience for IR alignment and simplifies the optical path collimation process. LBTEK also offers special surface treatment and custom sizing services. For inquiries, please contact technical support.
