| Code | 669138 | Type | 60mm Cage Alignment Plate | |
| Center Hole Diameter | Ø1.5mm | Applicable Wavelength Range | 250nm – 450nm | |
| Activation Light Power Density (Fluorescent Lamp) | 0.36μW/cm² @ 405nm | Activation Light Power Density (Dark Environment) | 0.26μW/cm² @ 405nm | |
| Coating Material |
Down-conversion fluorescent material |
Base Material | 6061-T6 aluminum alloy | |
| Coating Thickness |
700μm |
Coating Area | Ø13mm | |
| Base Surface Treatment |
Black anodization |
Compatible Cage System | 60mm |
Traders City price 44.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Coating Material: Down-conversion fluorescent material
Base Material: 6061-T6 aluminum alloy
Applicable Wavelength Range: 250 nm – 450 nm
Compatible Cage System: 60 mm

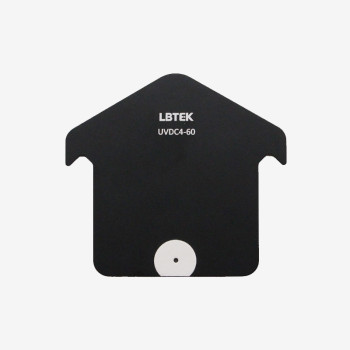

The LBTEK 60 mm Cage System UV Alignment Plate is a quick-insert ultraviolet alignment tool. Its surface features a Ø13 mm circular UV-sensitive coating for detecting ultraviolet light, along with a Ø1.5 mm central through hole for aligning the cage system center. This product provides convenience for UV alignment and simplifies the optical path collimation process. LBTEK also offers special surface treatment and custom sizing services. For inquiries, please contact technical support.
