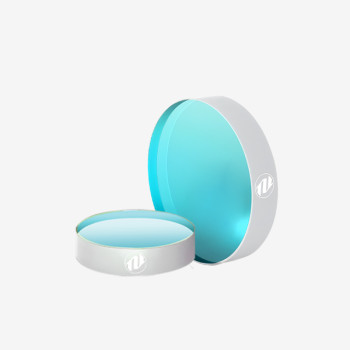

| Coad | 669132 | Type | 1064nm Plate Beamsplitter | |
| Dimension(mm) | 25.4 x 6.35 | Wavelength(nm) | 1064 + 532 | |
| Diameter | 25.4mm +0/-0.1 mm | Thickness | 6.35mm +0/-0.1 mm | |
| T/R Ratio | 1:99 | AOI(°) | 45 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥20mm | |
| Parallelism | 10 arcsec | Surface Quality S1 | 20-10 SD over CA | |
| Surface Quality S2 | 20-10 SD over CA | Surface Flatness | <λ/6@633nm over any 6mm diameter area | |
| GDD | - | Laser Damage Threshold | - | |

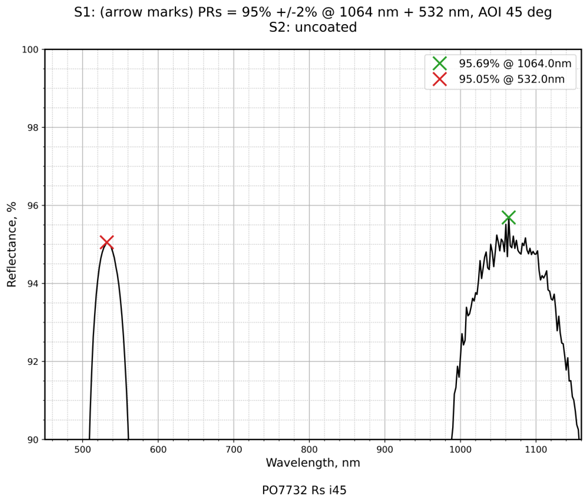

| Coating Type | IBS | Coating Specifications | S1:PRs=95%+ / -2%@1064nm+532nm / S2:Uncoated |
Traders City price 627.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
