| Coad | 669130 | Substrate | UVFS | |

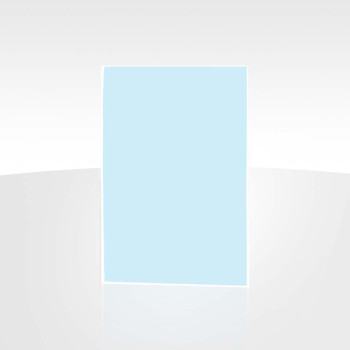

| Type | 45° Beamsplitter Compensation Plate | Clear Aperture | ＞90%CA | |
| Diameter(mm) | 25.0 x 36.0 | Diameter Tolerance | ±0.0 / 0.1mm | |
| Thickness(mm) | 1.00 | Thickness Tolerance | ±0.0 / 0.1mm | |
| Wavelength(nm) | 250 - 450 | Parallelism | ＜10 arcsec | |
| AOI(°) | 45 | Surface Quality | 20-10 S-D | |
| Transmission Wavefront Deviation | λ/10@632.8nm | Coating Type | AR Coating | |
| Coating Specifications | Ravg＜1.0%@a250nm-450nm | |||
Traders City price 127.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
