| Coad | 669111 | Substrate | UVFS | |

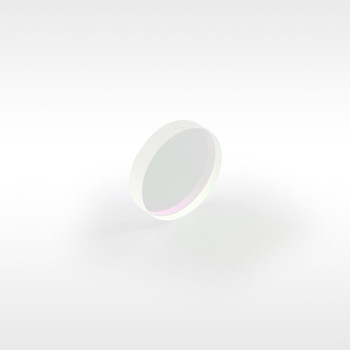

| Type | Nd:YAG Harmonic Beamsplitter | Clear Aperture | ＜90%CA | |
| Dimension(mm) | 12.7 x 3.0 | Parallelism | 30arcmin ± 10arcmin | |
| Diameter | 12.7mm +0/-0.1 mm | Protective Chamfer | - | |
| Thickness | 3.0mm +0/-0.1 mm | Surface Quality S1 | 10-5 | |
| HR Wavelength (nm) | 532 | Surface Quality S2 | - | |
| HT Wavelength (nm) | 1064 | Surface Flatness | λ/10 | |
| AOI(°) | 45 | Coating Type | Filter Coating | |
| Reflectivity | >99% | Coating Parameter S1 | R＞99%@532nm | |
| Transmittance | >95% | Coating Parameter S2 | V Coating：Rabs＜0.5%@1064nm |
Traders City price 120.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
