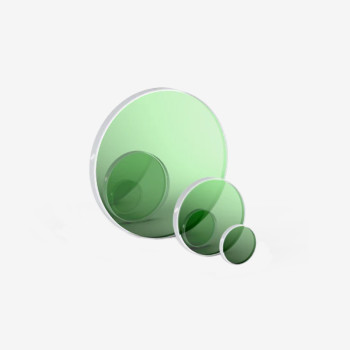

| Coad | 669080 | Type | Damage-Resistant Thin-Film Polarizer | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥22mm | |
| Dimension(mm) | 25.4 x 6.35 | Parallelism | 10 arcsec | |
| Diameter | 25.4mm +0/-0.1 mm | Thickness | 6.35mm +0/-0.1 mm | |
| Wavelength(nm) | 1064 | Surface Quality S1 | 20-10 S-D per CA | |
| Extinction Ratio | 1000:1 | Surface Quality S2 | 20-10 S-D per CA | |
| AOI(°) | 45 | Surface Flatness | <λ/10@633nm over any 9mm dia within CA | |

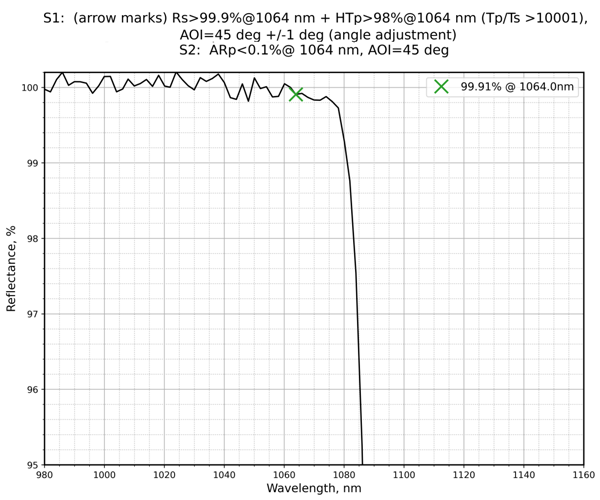

| Coating Type | IBS Polarization / Anti-Reflection (AR) Coating | Coating Parameter S1 | Rs>99.9%@1064nm+HTp>98%@1064nm(Tp/Ts>1000:1) | |
| Transmission Wavefront Deviation | - | Coating Parameter S2 | ARp<0.1%@1064nm | |
| Laser Damage Threshold | 18.0J/cm²,1064nm,9.8ns,100Hz,222.8μm(10³-on-1) | |||
Traders City price 331.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
