| Coad | 669079 | Type | Damage-Resistant Thin-Film Polarizer | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | 15mm x 10mm | |
| Dimension(mm) | 20.0 x 15.0 | Parallelism | <30 arcsec | |
| Diameter | 20.0mm x 15.0mm +0/-0.1 mm | Thickness | 6.0mm +0/-0.1 mm | |
| Wavelength(nm) | 1064 | Surface Quality S1 | 20-10 S-D (over CA) | |
| Extinction Ratio | 500:1 | Surface Quality S2 | 20-10 S-D (over CA) | |
| AOI(°) | 45 | Surface Flatness | <λ/8@633nm (over CA) | |

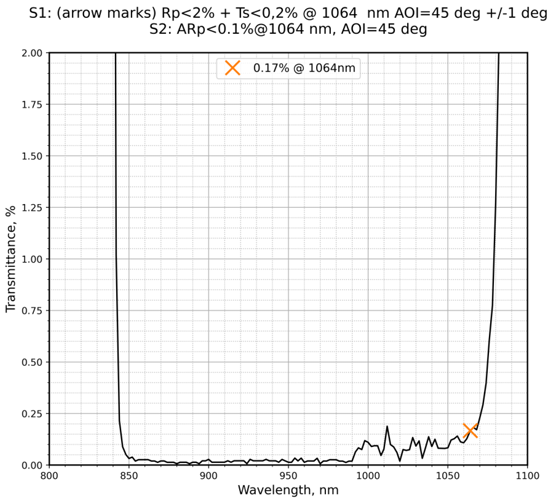

| Coating Type | IBS Polarization / Anti-Reflection (AR) Coating | Coating Parameter S1 | Rp<2%+Ts<0.2%@1064nm | |
| Transmission Wavefront Deviation | - | Coating Parameter S2 | ARp<0.1%@1064nm | |
| Laser Damage Threshold | >5J/cm2@1064nm,12ns,100Hz,p-pol | |||
Traders City price 238.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
