| Coad | 669078 | Clear Aperture | 20mm x 10mm | |

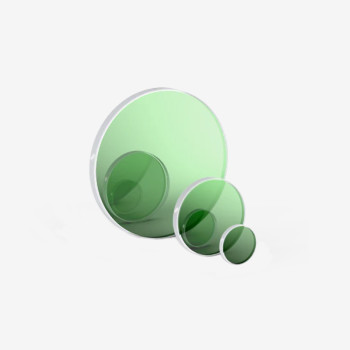

| Type | Damage-Resistant Thin-Film Polarizer | Surface Quality S1 | 20-10 S-D (over CA) | |
| Substrate | UVFS Corning 7980 0F | Surface Quality S2 | 20-10 S-D (over CA) | |
| Dimension(mm) | 20.0 x 15.0 | Surface Flatness | <λ/8@633 nm (over 10 mm CA) | |
| Diameter | 20.0mm x 15.0mm +0/-0.1 mm | Laser Damage Threshold | >5 J/cm2 @ 1064 nm, 12 ns, 100 Hz, p-pol | |
| Thickness | 6.0mm +0/-0.1 mm | Coating Type | IBS Coating | |

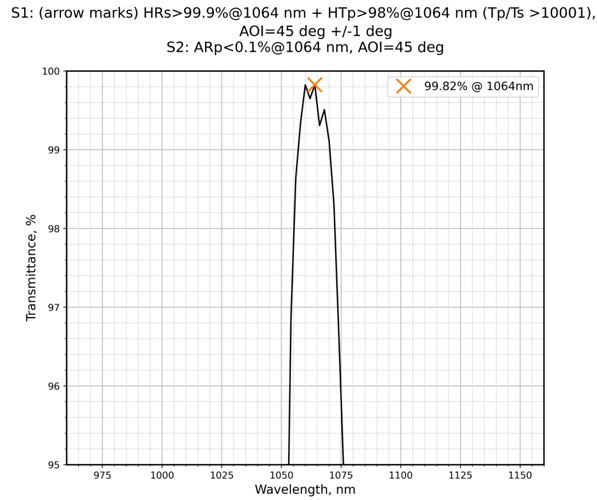

| Wavelength(nm) | 1064 | Coating Parameter S1 | Rs>99.9% @ 1064 nm + HTp>98% @ 1064 nm (Tp/Ts >1000:1) | |
| Extinction Ratio | 1000:1 | Coating Parameter S2 | ARp<0.1%@1064 nm | |
| AOI(°) | 45 | |||
Thin-film polarizers are indispensable components in high-power laser applications. Featuring a unique multilayer dielectric structure, they enable highly efficient separation of s- and p-polarized light with virtually zero absorption losses. Compared to conventional polarizers, thin-film polarizers achieve exceptionally high transmission (Tp) and reflection (Rs), ensuring minimal energy loss in the beam path—meeting the stringent requirements of femtosecond and high-power laser systems for energy efficiency.
To withstand the extreme conditions of ultrashort pulses and high peak intensities, damage-resistant thin-film polarizers incorporate durable, high-energy-resistant materials into the coating design, significantly increasing their laser-induced damage threshold (LIDT). Their low-absorption characteristics reduce thermal effects and thermal lensing, ensuring beam stability and high fidelity. Advanced deposition techniques and precise layer thickness control further enhance polarization accuracy to the 10⁻⁵ level, delivering stable performance across a broad spectral range (e.g., 400–2000 nm), and allowing flexible integration with various laser platforms.
With their high damage threshold, low absorption loss, and superior polarization purity, damage-resistant thin-film polarizers are widely used in femtosecond laser systems, industrial high-power laser machining and micromachining, nonlinear optics experiments, and laser sensing and metrology. They are the ideal choice for users seeking extreme performance and long-term reliability.
Notes:For optimal performance, store and operate at 25 °C and 40%–60% relative humidity. If contamination occurs on the coated surface, gently clean with >99% isopropyl alcohol and lint-free lens tissue. Do not use rough fabrics, water, or abrasive cleaners, as these may damage the coating.
