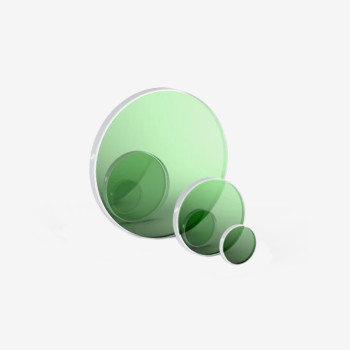

| Coad | 669076 | Type | Damage-Resistant Thin-Film Polarizer | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥41.4mm | |
| Dimension(mm) | 46.0 x 8.0 | Parallelism | <30 arcsec | |
| Diameter | 46.0mm +0/-0.1 mm | Thickness | 8.0mm +0/-0.1 mm | |
| Wavelength(nm) | 1030 + 515 | Surface Quality S1 | 20-10 S-D over CA | |
| Extinction Ratio | 30:1 | Surface Quality S2 | 20-10 S-D over CA | |
| AOI(°) | 45 | Surface Flatness | <λ/8@633nm per any 10mm area | |

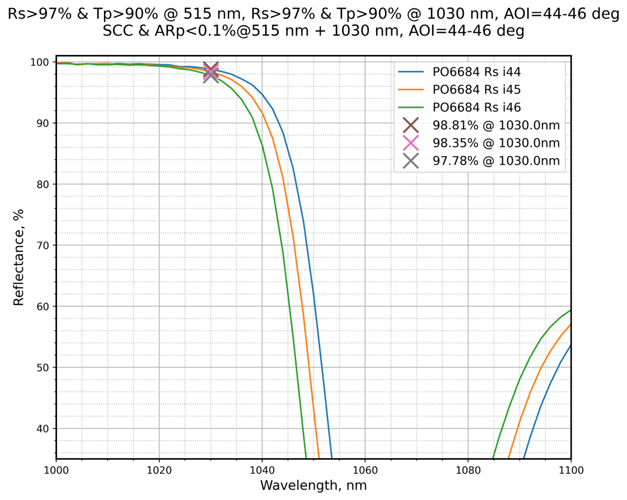

| Coating Type | IBS Polarization / Anti-Reflection (AR) Coating | Coating Parameter S1 | Rs>97%&Tp>90%@515nm,Rs>97%&Tp>90%@1030nm | |
| Transmission Wavefront Deviation | <λ/8@633nm over 35mm dia. CA | Coating Parameter S2 | SCC&ARp<0.1%@515nm+1030nm | |
| Laser Damage Threshold | - | |||
Traders City price 1311.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
