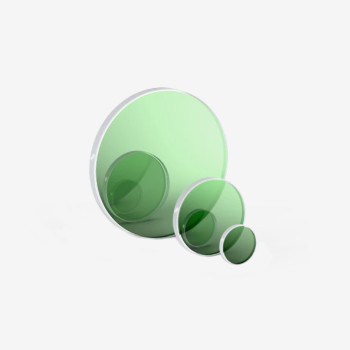

| Coad | 669075 | Type | Damage-Resistant Thin-Film Polarizer | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥22.8mm | |
| Dimension(mm) | 25.4 x 3.0 | Parallelism | <30 arcsec | |
| Diameter | 25.4mm +0/-0.1 mm | Thickness | 3.0mm +0/-0.1 mm | |
| Wavelength(nm) | 1030 + 515 | Surface Quality S1 | 20-10 S-D over CA | |
| Extinction Ratio | - | Surface Quality S2 | 20-10 S-D over CA | |
| AOI(°) | 56 | Surface Flatness | <λ/10@633nm over CA | |

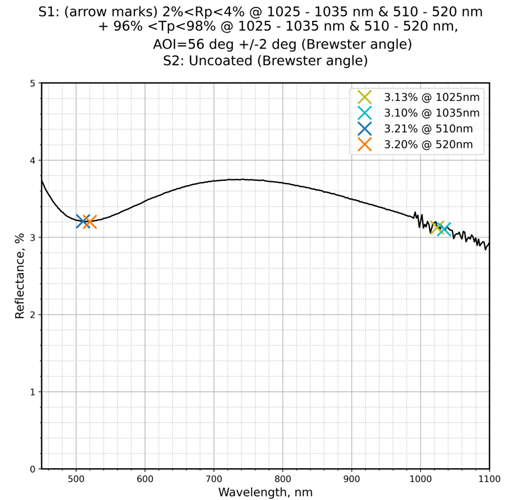

| Coating Type | IBS Polarization Coating | Coating Parameter S1 | 2% | |
| Transmission Wavefront Deviation | <λ/10@633nm over CA | Coating Parameter S2 | Uncoated(Brewsterangle) | |
| Laser Damage Threshold | >47.2μJ/mm²@1030nm,200fs,300kHz; >23,6μJ/mm²@515nm,200fs,300kHz(beamdia3mm) | |||
Traders City price 238.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
