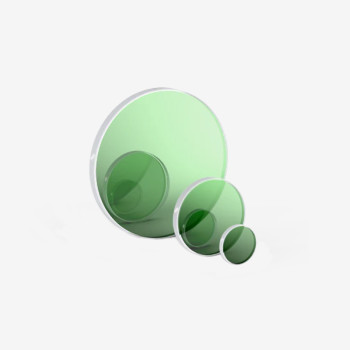

| Coad | 669074 | Type | Damage-Resistant Thin-Film Polarizer | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | >90% | |
| Dimension(mm) | 50.8 x 8.0 | Parallelism | <3 arcmin | |
| Diameter | 50.8mm +0/-0.1 mm | Thickness | 8.0mm +0/-0.1 mm | |
| Wavelength(nm) | 1030 | Surface Quality S1 | 20-10 S-D | |
| Extinction Ratio | 1000:1 | Surface Quality S2 | 20-10 S-D | |
| AOI(°) | 45 | Surface Flatness | <λ/8@633nm over 10mm area | |

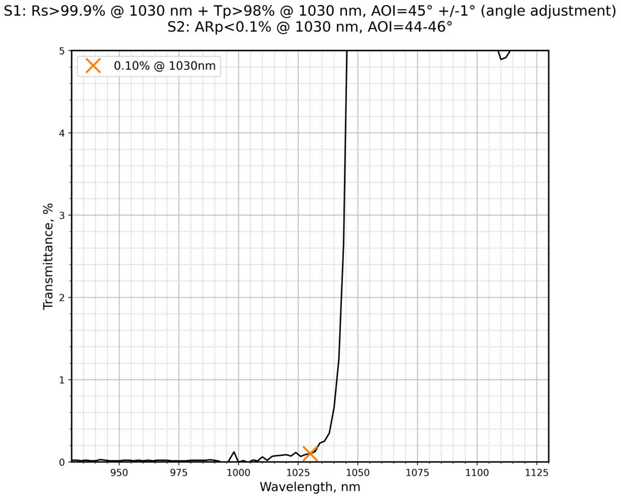

| Coating Type | IBS Polarization / Anti-Reflection (AR) Coating | Coating Parameter S1 | Rs>99.9%&Tp>98%@1030nm | |
| Transmission Wavefront Deviation | - | Coating Parameter S2 | ARp<0.1%@1030nm | |
| Laser Damage Threshold | >0.15J/cm2,1030nm,500fs,10kHz,p-pol >0.2J/cm2,1030nm,500fs,10kHz,s-pol | |||
Traders City price 836.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
