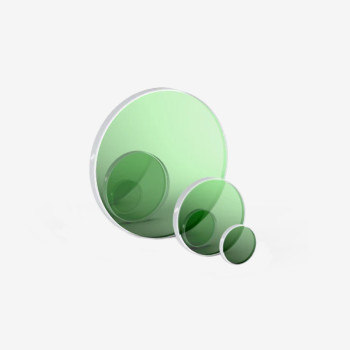

| Coad | 669073 | Type | Damage-Resistant Thin-Film Polarizer | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥23mm | |
| Dimension(mm) | 25.4 x 6.35 | Parallelism | <5 arcmin | |
| Diameter | 25.4mm +0/-0.1 mm | Thickness | 6.35mm +0/-0.1 mm | |
| Wavelength(nm) | 1030 | Surface Quality S1 | 20-10 S-D per CA (MIL-PRF-13830B) | |
| Extinction Ratio | 1000:1 | Surface Quality S2 | 20-10 S-D per CA (MIL-PRF-13830B) | |
| AOI(°) | 45 | Surface Flatness | PV <λ/4@633nm per CA | |

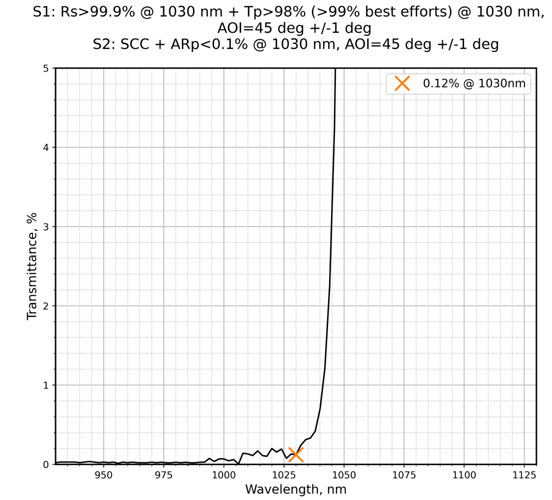

| Coating Type | IBS Polarization / Anti-Reflection (AR) Coating | Coating Parameter S1 | Rs>99.9%@1030nm+Tp>98%@1030nm | |
| Transmission Wavefront Deviation | <λ/3@633nm | Coating Parameter S2 | SCC+ARp<0.1%@1030nm | |
| Laser Damage Threshold | Optimized for 5mJ, 200kHz, 500fs. | |||
Traders City price 367.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
