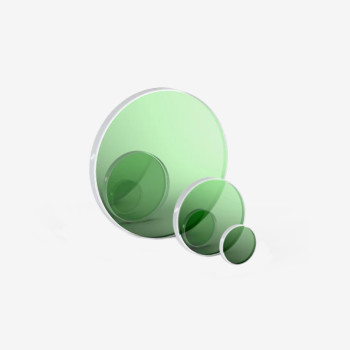

| Coad | 669064 | Type | Damage-Resistant Thin-Film Polarizer | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥20mm | |
| Dimension(mm) | 25.4 x 3.0 | Parallelism | <3 arcmin | |
| Diameter | 25.4mm +0/-0.1 mm | Thickness | 3.0mm +0/-0.1 mm | |
| Wavelength(nm) | 800 | Surface Quality S1 | 20-10 SD over CA (MIL-PRF-13830B) | |
| Extinction Ratio | 1000:1 | Surface Quality S2 | 20-10 SD over CA (MIL-PRF-13830B) | |
| AOI(°) | 45 | Surface Flatness | λ@632.8nm over CA | |

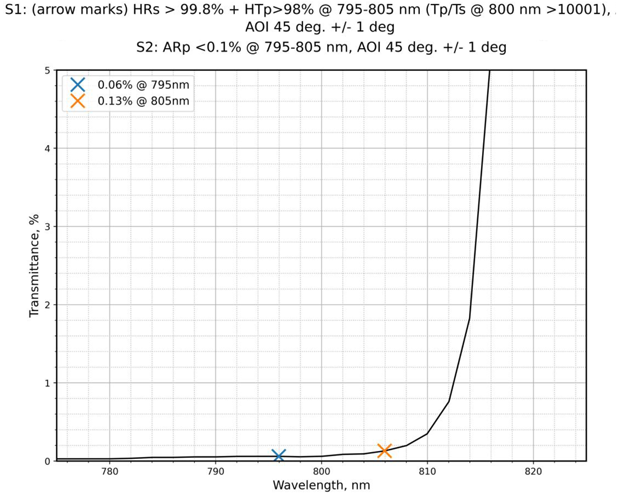

| Coating Type | IBS Polarization / Anti-Reflection (AR) Coating | Coating Parameter S1 | HRs>99.9%+HTp>98%@800nm | |
| Transmission Wavefront Deviation | λ/10@632.8nm over CA | Coating Parameter S2 | ARp<0.1%@800nm | |
| Laser Damage Threshold | - | |||
Traders City price 223.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
