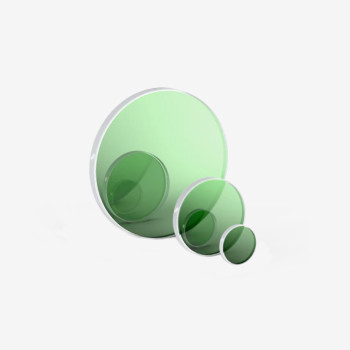

| Coad | 669063 | Type | Damage-Resistant Thin-Film Polarizer | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | 18mm | |
| Dimension(mm) | 20.0 x 5.0 | Parallelism | <10 arcsec | |
| Diameter | 20.0mm +0/-0.1 mm | Thickness | 5.0mm +0/-0.1 mm | |
| Wavelength(nm) | 800 | Surface Quality S1 | MIL 10/5 S/D | |
| Extinction Ratio | 1000:1 | Surface Quality S2 | MIL 10/5 S/D | |
| AOI(°) | 45 | Surface Flatness | <λ/8@633nm over any 10mm dia within CA | |

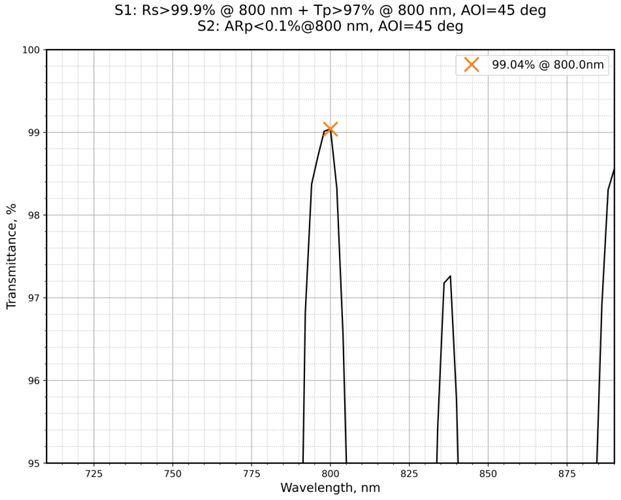

| Coating Type | IBS Polarization / Anti-Reflection (AR) Coating | Coating Parameter S1 | Rs>99.9%@800nm+Tp>97%@800nm | |
| Transmission Wavefront Deviation | - | Coating Parameter S2 | ARp<0.1%@800nm | |
| Laser Damage Threshold | - | |||
