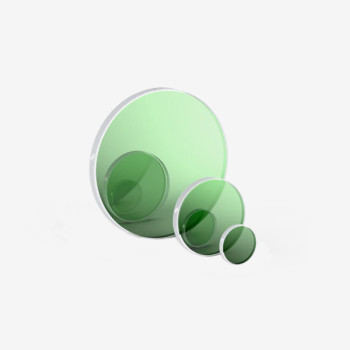

| Coad | 669058 | Type | Damage-Resistant Thin-Film Polarizer | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | >80% | |
| Dimension(mm) | 25.4 x 6.35 | Parallelism | <30 arcsec | |
| Diameter | 25.4mm +0/-0.1 mm | Thickness | 6.35mm +0/-0.1 mm | |
| Wavelength(nm) | 532 | Surface Quality S1 | 20-10 S-D | |
| Extinction Ratio | 500:1 | Surface Quality S2 | 20-10 S-D | |
| AOI(°) | 45 | Surface Flatness | <λ/10@633nm over 7mm aperture | |

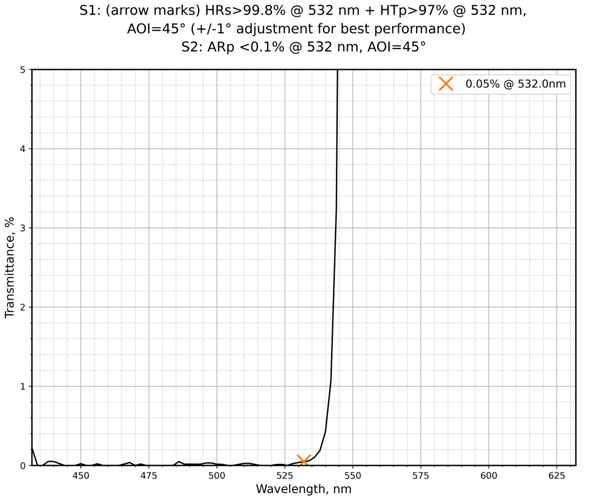

| Coating Type | IBS Polarization / Anti-Reflection (AR) Coating | Coating Parameter S1 | HRs>99.8%@532nm+HTp>97%@532nm | |
| Transmission Wavefront Deviation | λ/8@633nm over 10mm aperture | Coating Parameter S2 | ARp<0.1%@532nm | |
| Laser Damage Threshold | >6,79J/cm2@532nm,6ns,100Hz | |||
Traders City price 303.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
