| Code | 669053 | Type | 30mm Cage System Alignment Plate | |
| Center Hole Size | Ø1.5mm | Applicable Wavelength Range | 700nm – 1600nm | |
| Activation Light Power Density (Fluorescent Lamp) | 3.82 μW/mm² @ 980 nm; 65 μW/mm² @ 1550 nm | Activation Light Power Density (Dark Environment) | 0.85 μW/mm² @ 980 nm; 5.7 μW/mm² @ 1550 nm | |
| Coating Material |
Up-Conversion Fluorescent Material |
Base Material | 6061-T6 Aluminum Alloy | |
| Coating Thickness |
300μm |
Coating Size | Ø13mm | |
| Base Surface Finish |
Black Anodized |
Compatible Cage System | 30mm |
Traders City price 31.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Coating Material: Up-Conversion Fluorescent Material
Base Material: 6061-T6 Aluminum Alloy
Applicable Wavelength Range: 700 nm–1600 nm
Compatible Cage System: 30 mm

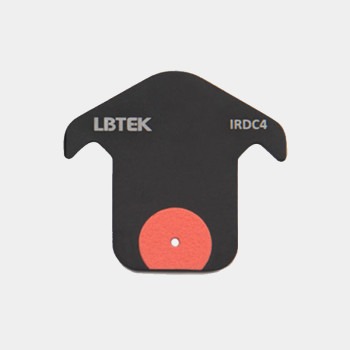

The LBTEK 30 mm Cage System IR Alignment Plate is a quick-insert infrared alignment tool. It features a Ø13 mm circular IR-sensitive coating for detecting infrared light and a central Ø1.5 mm through hole for aligning the cage system center. This product provides convenience for infrared beam alignment and simplifies the optical path adjustment process. LBTEK also offers special surface finishing and custom sizing services; please contact technical support for more details.
