| Code | 669031 | Type | Cage System Adapter Plate | |
| Material | 6061-T6 Aluminum Alloy | Surface Finish | Black Anodized | |
| Maximum Optics Thickness | 8.5mm | Specification | 30mm to 60mm Cage | |
| Post Mounting Threaded Hole | M4 | Center Threaded Hole | SM1 Through Hole, includes 2 × SM1R Retaining Rings | |
| Clear Aperture |
Ø23mm |
Cage Rod Through Holes | 8 |
Traders City price 35.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Material: 6061-T6 Aluminum Alloy
SM1 Through Hole with 2 × SM1R Retaining Rings
Compatible with 30 mm and 60 mm Cage Systems

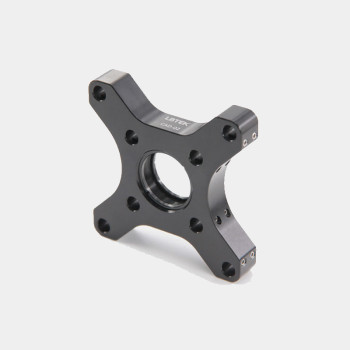

The LBTEK Cage System Adapter Plate is designed for adapting between 30 mm and 60 mm cage components. It features a central SM1 through hole with two SM1R retaining rings, allowing installation of Ø25.4 mm optics up to 8.5 mm thick. An M4 threaded hole is included for post mounting. Each cage rod through hole has two side-mounted M3 setscrews, compatible with a 1.5 mm hex wrench.
