| Coad | 669025 | Substrate | UVFS | |

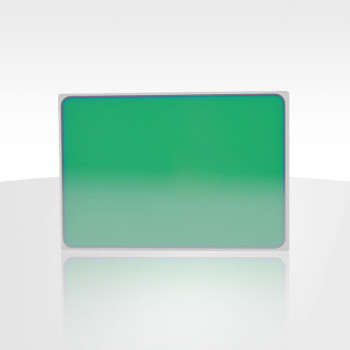

| Type | Long-Wave-Pass Dichroic Mirrors | Clear Aperture | >32.4mm x 22.5mm | |
| Dimension(mm) | 36.0 x 25.0 x 1.0 | Parallelism | <3arcmin | |
| Diameter | 36.0mm x 25.0mm +0/-0.2mm | Protective Chamfer | - | |
| Thickness | 1.0mm ±0.05mm | Surface Quality S1 | 60-40 | |
| HR Wavelength (nm) | 400 - 570 | Surface Quality S2 | - | |
| HT Wavelength (nm) | 625 - 1600 | Surface Flatness | λ/2@633nm | |
| AOI(°) | 45 | Coating Type | Dielectric Coating | |
| Reflectivity | >95% | Coating Parameter S1 | Ravga>95%，Rabs>90%@400-570nm+Tavga>90%，Tabs>85%@625-1600nm | |
| Transmittance | >90% | Coating Parameter S2 | Rabsb<2%@625nm-1600nm |
Traders City price 266.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
