| Code | 668920 | Type | Dovetail 30 mm Cage Mount | |
| Material | 6061-T6 Aluminum Alloy | Surface Finish | Black Anodized | |
| Compatible Cage System | 30mm | Optics Mounting Method | Not Directly Mountable | |
| Mounting Method | Dovetail Rail | Cage Center Height | 30mm | |
| Dimensions | 40.5mm × 23.2mm × 9mm | Weight | 0.015kg |
Mounts 30 mm cage systems onto dovetail rails
Dovetail clamp design allows easy positioning and locking along the rail
Cage center height: 30 mm or 50 mm above rail surface
The LBTEK Dovetail 30 mm Cage Mount is designed for building 30 mm cage systems along dovetail rails. The dovetail clamp at the bottom allows the mount to be inserted anywhere along the rail and secured by tightening M2 hex screws.
The CMS-7 Cage Plate features a central SM1 internal thread for directly mounting optics up to Ø25.4 mm in diameter and 4.8 mm thick. Four M4 setscrews on the side secure Ø6.0 mm cage rods.

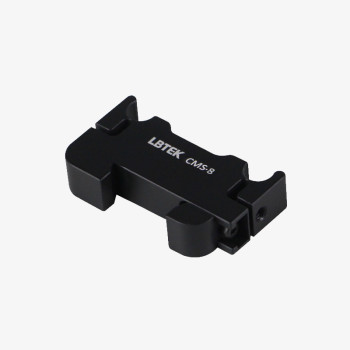

The CMS-8 and CMS-10 Snap-In Mounts include two flexure clamps for quick and stable installation of 30 mm cage components, with two M3 setscrews on the side for securing.
When installed with CMS-7/CMS-8/CMS-10, the cage center heights are 30 mm / 30 mm / 50 mm respectively.
