| Code | 668919 | Type | Dovetail 60 mm Cage Mount | |
| Material | 6061-T6 Aluminum Alloy | Surface Finish | Black Anodized | |
| Optics Mounting Method | Not Directly Mountable | Dimensions | 71mm × 28.1mm × 9mm | |
| Weight | 0.025kg | Cage Center Height | 50mm | |
| Compatible Cage System | 60mm | Mounting Method | Dovetail Rail |
Mounts 60 mm cage systems onto dovetail rails
Dovetail clamp design allows easy positioning and locking along the rail
Cage center height: 50 mm above rail surface
The LBTEK Dovetail 60 mm Cage Mount is designed for building 60 mm cage systems along dovetail rails. The dovetail clamp at the bottom allows insertion anywhere along the rail and can be secured by tightening M2 hex screws.
The CMS-11 Cage Plate has a central SM2 internal thread, suitable for mounting optics with Ø50.8 mm diameter and up to 4 mm thickness. Four M4 setscrews on the side secure Ø6.0 mm cage rods.

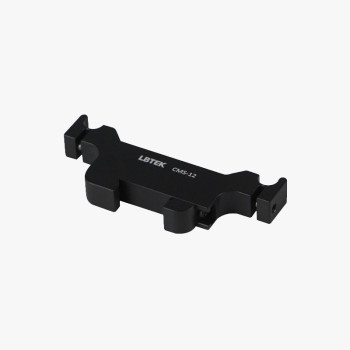

The CMS-12 Snap-In Mount features two flexure clamps that allow quick and stable installation of 60 mm cage components, secured with two M3 setscrews on the side.
Both CMS-11 and CMS-12 provide a cage system center height of 50 mm.
