| Coad | 668911 | Substrate | N-BK7 | |

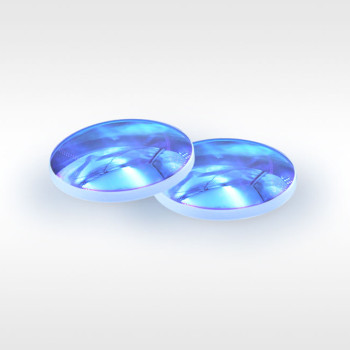

| Type | Convex–Concave Lenses | Clear Aperture | 90% CA | |
| Diameter(mm) | 25.40 | Diameter Tolerance | +0/-0.1mm | |
| Thickness(mm) | 2.00 | Thickness Tolerance | +0/-0.1mm | |
| Center Thickness | 2.4mm | Parallelism | ≤3 arcmin | |
| Wavelength(nm) | 400 - 700 | Surface Quality | 40-20 | |
| Focal Length(mm) | 400.00 | Focal Length Tolerance | ±1% | |
| Radius of Curvature | 136.8mm / 402.4mm | Back Focal Length | 400.7mm | |
| Sagittal Aperture | 0.5 | Aperture on Curved Surface | 3 | |
| Surface Irregularity | - | Laser Damage Threshold | 0.19J/cm2@515nm，290fs，100Hz，Ø10.72μm (100 Pulses) | |
| Coating Type | Anti-Reflective Coating | Mechanical Housing | - | |
| Coating Specifications | Ravg<0.5%a@400-700nm | |||
Traders City price 31.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
