| Code | 668904 | Type | 60mm Cage System Self-Centering Lens Mount | |
| Material | 6061-T6 Aluminum Alloy | Surface Finish | Black Anodized | |
| Compatible Optics Diameter | Ø3.8mm – Ø46mm | Clamping Thickness | <4mm | |
| Compatible Cage System | 60mm | Bottom Threaded Hole | M4 |
Traders City price 207.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Holds optics Ø3.8 mm – Ø46 mm
Compatible with 60 mm cage system
One-hand actuator tabs for easy installation

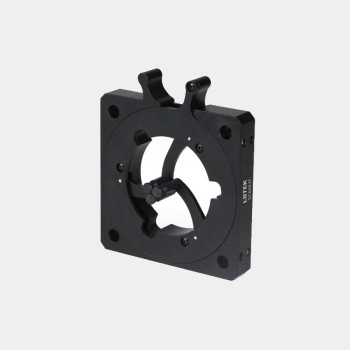

The LBTEK 60 mm Cage System Self-Centering Lens Mount features three spring-loaded jaws that securely hold optics from Ø3.8 mm to Ø46.0 mm. By pressing the actuator tabs, the jaws open for quick loading, and releasing the tabs clamps the lens firmly in place. The nested ring design ensures the optics are centered within the 60 mm cage system.
The mount includes four through-holes for attaching MOP series Ø6 mm cage rods and eight M4 setscrews to lock the mount in position. An additional M4 threaded hole on the bottom allows direct mounting to Ø12.7 mm posts.
