| Code | 668903 | Type | Cage Adjustment Mount | |
| Material | 6061-T6 Aluminum Alloy | Surface Finish | Black Anodized | |
| Travel Range | ±6.5mm | Micrometer Resolution | 10µm | |
| Drive Position | Left-Drive | Parallelism | ≤8µm | |
| Net Weight | 0.33kg | Mounting Slot Spec | 4mm (0 ~ +0.02) |
Traders City price 468.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Single-axis drive with Mitutoyo micrometer
Travel Range: ±6.5 mm
Micrometer Resolution: 10 µm
Includes 1 Optics Mount

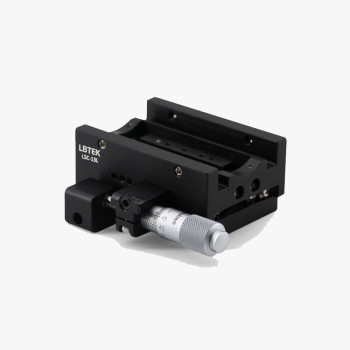

The LBTEK LSC-13L Cage Translation Stage is designed for 30 mm cage systems and can be secured with setscrews to allow optical components to be translated along the optical axis. It features a left-hand drive with a single micrometer, providing ±6.5 mm travel and 10 µm resolution. A positioning slot is included for precise alignment of the optics mount.
Accessories include one LSC-13LA optics mount, one 2 mm hex wrench, and one 2.5 mm hex wrench. Depending on requirements, other optics mounts can also be selected: the LSC-13LB XY Mount and the LSC-13LC Rotation Mount, available separately.
