| Coad | 668704 | Substrate | N-BK7 | |
| Type | Plano-Convex Lenses | Clear Aperture | 90% CA | |
| Diameter(mm) | 25.40 | Diameter Tolerance | +0/-0.1mm | |
| Thickness(mm) | 2.00 | Thickness Tolerance | +0/-0.1mm | |
| Center Thickness | 7.2mm | Parallelism | <3 arcmin | |
| Wavelength(nm) | 400 - 1100 | Surface Quality | 40-20 | |
| Focal Length(mm) | 35.00 | Focal Length Tolerance | ±1% | |
| Radius of Curvature | 18.0mm | Back Focal Length | 30.1mm | |
| Sagittal Aperture | 0.5 | Aperture on Curved Surface | 3 | |
| Surface Irregularity | λ/2@633 nm | Laser Damage Threshold | - | |

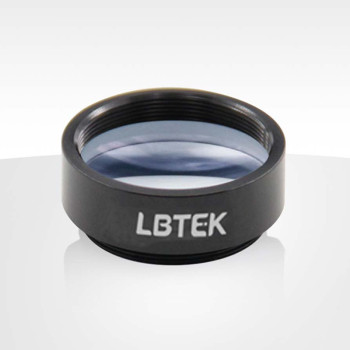

| Coating Type | Anti-Reflective Coating | Mechanical Housing | SM1-8A（Lens sleeve with SM1 internal and external threads） | |
| Coating Specifications | Ravg<1%a@400-1100nm | |||
Traders City price 50.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
