| Coad | 668313 | Substrate | N-BK7 | |
| Type | Plano-Convex Lenses | Clear Aperture | 90% CA | |
| Diameter(mm) | 25.40 | Diameter Tolerance | +0/-0.1mm | |
| Thickness(mm) | 2.00 | Thickness Tolerance | +0/-0.1mm | |
| Center Thickness | 6.4mm | Parallelism | <3 arcmin | |
| Wavelength(nm) | 400 - 700 | Surface Quality | 40-20 | |
| Focal Length(mm) | 40.00 | Focal Length Tolerance | ±1% | |
| Radius of Curvature | 20.6mm | Back Focal Length | 35.7mm | |
| Sagittal Aperture | 0.5 | Aperture on Curved Surface | 3 | |
| Surface Irregularity | λ/2@633 nm | Laser Damage Threshold | 0.19J/cm2@515nm，290fs，100Hz，Ø10.72μm (100 Pulses) | |
| Coating Type | Anti-Reflective Coating | Mechanical Housing | - | |
| Coating Specifications | Ravg<0.5%a@400-700nm | |||

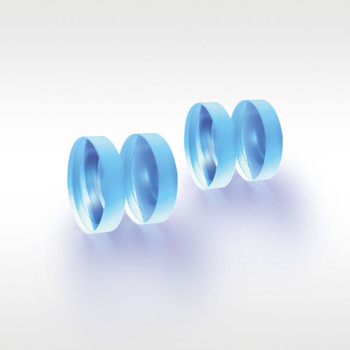

A plano-convex lens has one flat surface and one convex surface, providing a positive focal length. It is commonly used for beam reduction, focal length shortening, or image magnification. To minimize spherical aberration, a plano-convex lens should be oriented with the curved surface facing the collimated beam when focusing, and with the flat surface facing the point source when collimating. LBTEK manufactures a wide range of lenses using N-BK7, the most common optical glass material, widely applied in the visible and near-infrared spectral regions. All our lenses are precisely fabricated and strictly quality-controlled to ensure that LBTEK delivers high-quality optical products at a reasonable price.
LBTEK plano-convex lenses have a positive focal length and are commonly used for imaging or beam collimation. They are manufactured from RoHS-compliant N-BK7 glass, one of the most widely used materials for high-quality optical components, particularly suitable for applications in the visible and near-infrared spectral ranges. All LBTEK circular lenses can be mounted in LBTEK standard lens tubes, fixed lens mounts, or various coaxial mounting plates, allowing customers to choose the most suitable installation method for their specific application needs.
