| Code | 668153 | Type | Compact Optical Mount | |
| Material | 6061-T6 Aluminum Alloy | Surface Finish | Black Anodized | |
| Optical Axis Height | 15mm | Dimensions | 25mm × 27.5mm × 21mm | |
| Screw Spec | M5 × 0.25 | Front Plate Mounting Hole | M6 | |
| Back Plate Mounting Hole | M4 | Included Accessory | 1 Hex Wrench | |
| Adjustment Resolution | 0.84°/rev | Pitch/Yaw Adjustment Range | ±4° |
Traders City price 43.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Angle Range: ±4°
Dimensions: 25 mm × 27.5 mm × 21 mm
Knobless adjusters to save space
Two M4 holes on the back plate for vertical or horizontal post mounting
Front plate with M6 hole for connecting with LBTEK FMH series fixed mounts to hold 1-inch optics

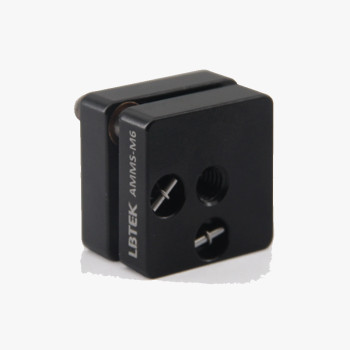

LBTEK Compact Optical Mount is specially designed for use in confined spaces and can be combined with FMH series mounts for installing 1-inch optical components. The base and sides feature M4 threaded holes for connection with Ø12.7 mm stainless steel optical posts or other mounting accessories.
