| Code | 668052 | Type | Fixed Plate Holder | |
| Material | 6061-T6 Aluminum Alloy | Surface Finish | Black Anodized | |
| Max. Optics Thickness | 12mm | Optics Width Range | 20mm – 55mm | |
| Clamping Method | Screw-driven tightening | Dimensions | 43mm × 23mm × 21mm | |
| Weight | 0.05kg | Setscrew Tip Material | Silicone | |
| Bottom Countersunk Hole | M4 |
Traders City price 49.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Adjustable clamping thickness
Compatible with circular and rectangular optics
Locking screw tip made of silicone
Capable of holding large optical components

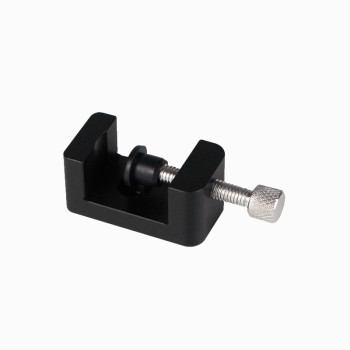

LBTEK Fixed Plate Holder is designed for securing circular or rectangular optical components. The clamping thickness can be adjusted, supporting optics with a width range of 20 mm – 150 mm and a maximum thickness of 12 mm. The locking screw tip is made of silicone, effectively preventing damage to the mounted optics. The 23 mm Fixed Plate Holder features one M4 countersunk hole at the base, while the 77 mm Fixed Plate Holder has one M6 and two M4 countersunk holes, allowing connection with Ø12.7 mm, Ø25 mm, and Ø38 mm stainless steel optical posts.
