| Coad | 668051 | Type | Clamping Block | |
| Countersunk slot length (mm) | 10.00 | Maximum clamping diameter (mm) | 3.20 | |
| Material | 6061-T6 Aluminum Alloy | Quantity | 1 | |
| Dimension(mm) | 20.0 x 6.0 x 6.0mm | Screw specification | M3 | |
| Weight | 0.001kg | |||
The LBTEK table clamp is made of 6061-T6 aluminum alloy with a black anodized surface finish. When building an optical system, if no suitable threaded hole is available at the base position for securing, the universal table clamp can be flexibly positioned around the base to find the nearest threaded hole. The elongated slot design allows the clamp to translate along the slot or rotate 360° around the fixing screw, enabling stable fixation of the base even in compact spaces.

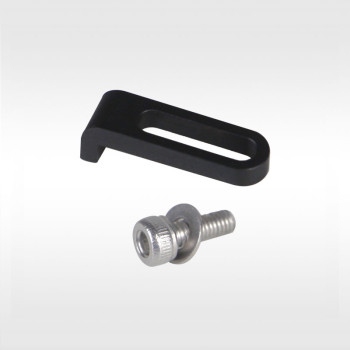

The LBTEK CP20 clamping plate features an L-shaped design and is compatible with certain optomechanical products such as the OFB series fiber holders, OFF32 fiber mount, and OFH series fiber clamps. It has a maximum clamping thickness of 3.2 mm and can also be used with other threaded mounting holes for flexible installation on mounting plates. Each CP20 is supplied with two M3 socket head cap screws and two washers.
