| Coad | 668044 | Type | Fork Block | |
| Countersunk slot length (mm) | 45.00 | Maximum clamping diameter (mm) | 32.00 | |
| Material | 316 Stainless Steel | Quantity | 5 | |
| Dimension(mm) | - | Screw specification | M6 Hex Socket Cap Screw + Ø6mm Flat Washer | |
| Weight | - | |||
The LBTEK post holder fork clamp is made of solid 316 stainless steel with an integrated structure design. Its three-point contact provides stable clamping force, with a clamping diameter of 32 mm. It can be used with base-mounted Ø12.7 mm post holders, Ø25 mm base-mounted optical posts, and Ø25 mm adjustable height posts. The PHC series fork clamps are available with countersunk elongated slot lengths of 10 mm, 32 mm, and 45 mm, and can rotate 360° around the base for convenient selection of mounting holes. Each fork clamp comes with one M6 × 16 mm socket head cap screw and one Ø6 mm flat washer.

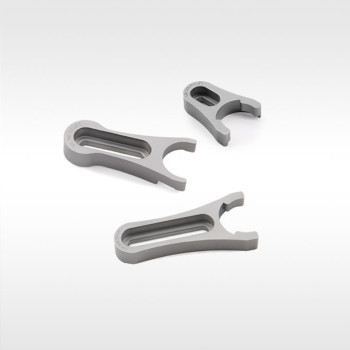

The PHC series fork clamps are available in three versions with countersunk elongated slot lengths of 10 mm, 32 mm, and 45 mm. They can rotate 360° around the base for convenient selection of mounting holes. Manufactured using 316 powder metallurgy with excellent strength and precision, they ensure reliable performance. Each fork clamp comes with one M6 × 16 mm socket head cap screw and one Ø6 mm flat washer. Please note that excessive tightening may deform the surface of the optical table, which can lead to component misalignment and reduced stability.
