| Code | 668035 | Type | Fixed Microscope Slide Holder | |
| Surface Finish | Black Anodized | Main Material | 6061 Aluminum Alloy, 304 Stainless Steel | |
| Slide Clamping Width | >44mm | Petri Dish Clamping Diameter | 37.1mm – 41.4mm | |
| Clamping Thickness | <3mm | Petri Dish Slot Depth | 3mm | |
| Clear Aperture |
35mm |
Bottom Countersunk Hole Spec | M4 |
Accepts microscope slides wider than 44 mm
Compatible Petri dish diameters: 37.1 mm – 41.4 mm
Base plate can be mounted on translation stages with M6 threaded holes spaced 50 mm apart

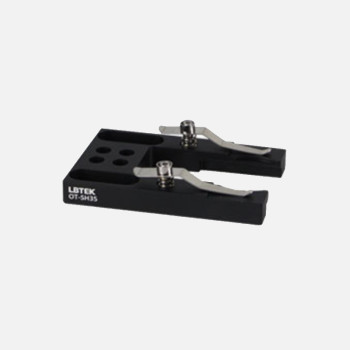

LBTEK Fixed Microscope Slide Holder is designed for mounting Petri dishes and microscope slides on the Z-axis of LBTEK three-axis translation stages, enabling integration into customized microscope systems such as optical tweezers. Two sets of mounting holes provide versatile options: four M4 countersunk holes with 12.5 mm spacing, and two M6 countersunk slots with 50 mm spacing, allowing compatibility with various components.
The spring clip can be rotated, making it easy to replace slides and dishes. The OT-SH1 holder features a 25.4 mm clear aperture at the mounting surface center for light transmission, while the OT-SH35 has a 35 mm clear aperture. In addition to microscope slides, the OT-SH35 is also compatible with test targets, large-diameter objectives, and other rectangular optics wider than 44.0 mm.
