| Code | 668009 | Type | Rod Adjustment Mount | |
| Material | 6061-T6 Aluminum Alloy | Surface Finish | Black Anodized | |
| Max. Clamping Height | 60mm | Max. Clamping Thickness | 12mm | |
| Mounting Hole | M6 |
Traders City price 113.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
For mounting rectangular optical components
Max. Clamping Height: 60 mm
Mounting Hole: M6

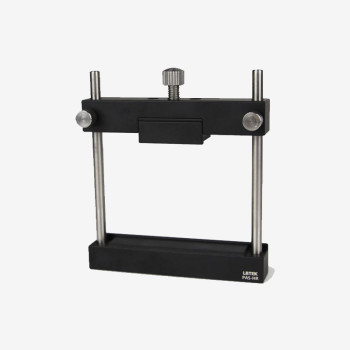

LBTEK Rectangular Adjustment Mount can hold rectangular optics up to 60 mm in height and 12 mm in thickness. The upper and lower brackets are connected by stainless steel guide rods, with rubber pads inside to protect the surfaces of the mounted components. A top M6 × 16 knurled screw connects to the pressing head, allowing vertical adjustment to secure optics of different sizes. Two M4 × 6 hand-tightened screws on the side effectively lock the position of the upper bracket. The base includes an M6 mounting hole for extension with optical posts.
