| Coad | 668004 | Type | Dovetail Optical Rail | |
| Length（mm） | 75 | Parallelism (mm) | <0.05 | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodized | |
| Cross-sectional dimensions | - | Mounting Hole Specifications | M6 countersunk elongated slot | |
| Weight | - | |||

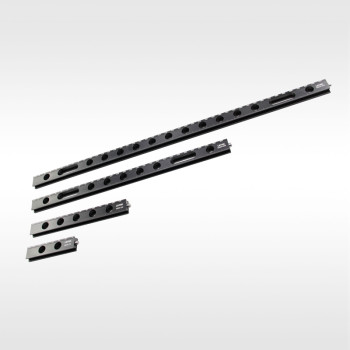

The LBTEK dovetail optical rail is designed for building highly stable and rigid laboratory systems. Used together with snap-in dovetail sliders, mounted optical and mechanical components can slide linearly along the rail. Both the rail and the sliders are precisely machined to ensure accurate lateral alignment during translation along the rail length. The sliders feature a snap-in design, allowing installation at any position on the rail without disassembling the system, with multiple slider specifications available.
In addition, LBTEK also provides the DR50F-50Z cross vertical mounting adapter and the TG1 adapter washer, which converts M6 countersunk holes to accept M4 socket head cap screws.
The LBTEK dovetail rail is designed for use with snap-in dovetail sliders. It features 1 mm scale markings with numerical labels every 10 mm for precise positioning. Multiple elongated slots and M6 countersunk holes allow flexible mounting on breadboards or optical tables, and the rail can also be secured using CB-2 dovetail clamps. One end has a Ø6 mm locating pin and the other end a Ø6 mm locating hole, enabling multiple dovetail rails to be connected end-to-end to extend the length.
