| Code | 667988 | Type | Cuvette Holder | |
| Material | 304 Stainless Steel | Surface Finish | Sandblasted | |
| Compatible Optics Diameter | 12.7mm | Mounting Thread | SM1 |
SM05 Internal Thread for mounting a Ø1/2 inch plano-convex lens in the optical path
SM1 External Thread compatible with side ports on the CMH1 holder

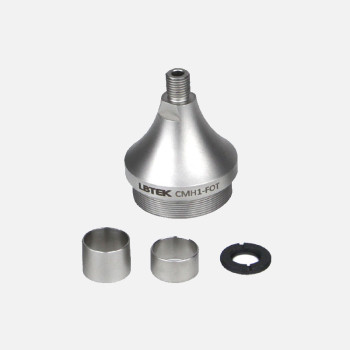

Includes 6.8 mm and 9.6 mm spacers, plus one SM05R retaining ring
LBTEK SMA-to-SM1 Fiber Adapter allows insertion of a Ø1/2 inch plano-convex collimating lens into the optical path. It can replace the SMA fiber adapter included with the CMH1. Supplied with two spacers (6.8 mm and 9.6 mm) and one SM05R retaining ring for lens fixation.
Note: The adapter does not include a lens. Users can select LBTEK plano-convex lenses such as CX10304 or CX20304. To avoid damaging optics when tightening the retaining ring, the OWR-05A retaining ring wrench is recommended. When installing the plano-convex lens, the flat side should face the fiber.
