| Code | 667986 | Type | Cuvette Holder | |
| Material | (Main) 6061-T6 Aluminum Alloy | Surface Finish | Black Anodized | |
| Side Optical Ports / Qty | SM1 / 4 pcs | Optical Beam Height (Z) | 8.5mm | |
| Cuvette Size | 12.5mm × 12.5mm × 45mm | Cage System Compatibility | 30mm Cage System Compatible | |
| Bottom Mounting Hole / Qty | M6 / 1pc |
Suitable for free-space and cage system applications
Includes one interchangeable SMA-to-SM1 fiber adapter
Includes one Ø25.4 mm filter holder
Multiple mounting options available, compatible with Ø1 inch lens tubes, 30 mm cage systems, and posts

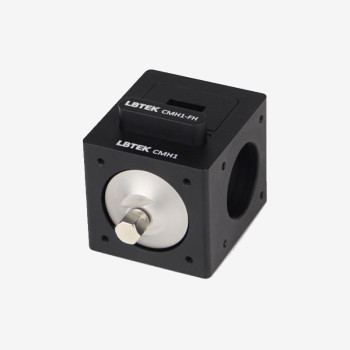

LBTEK Cuvette Holder with Fiber Ports CMH1 is designed to hold 12.5 mm × 12.5 mm × 45 mm cuvettes with a Z-axis height of 8.5 mm. It features four SM1 side optical ports compatible with SM1 lens tubes, and comes with two SM1 protective end caps (SM1-C2) to cover unused ports and prevent dust from entering optomechanical components.
Accessories included: (1) One interchangeable SMA-to-SM1 fiber adapter, enabling direct connection of the holder to fiber-based light sources, detectors, or spectrometers. The adapter includes a fixed, non-removable uncoated aspheric condenser lens (AC4101: f = 8 mm, NA = 0.61). For applications requiring different lenses, the adapter can be replaced with the optional LBTEK CMH1-FOT fiber adapter. (2) One CMH1-FH filter holder for Ø25.4 mm filters with a thickness of 3.5 mm–7 mm. Positioned between the cuvette and one optical port, it provides wavelength isolation of incident or transmitted radiation. For quick filter exchange, LBTEK also offers additional Ø25.4 mm CMH1-FH filter holders separately. Users can select accessories according to their specific needs.
