| Code | 667984 | Type | Stainless Steel Platform Mounts & Accessories | |
| Material | 316L stainless steel | Surface Finish | Sandblasted + passivated | |
| Suitable Optics | Prisms, cubes, etc | Adjuster Spec / Qty | M6 × 0.25 / 2 pcs | |
| Table Size | 46mm × 46mm × 6.5mm | Weight | 0.217kg | |
| Included Tool | Wrench HWS-2 | Mounting Holes | 3 × M4 countersunk holes | |
| Locking Method | Axial lock with locknut | Included Screws | M4 × 10 hex socket cap screws | |
| Adjustment Resolution | 0.44°/rev | Tilt/Yaw Range | ±4° |
2 precision adjusters with knobs and locknuts, knobs removable
Adjustable angle: ±4°
Adjustment resolution: 0.44°/rev
With 3 × M4 countersunk holes for multiple mounting options

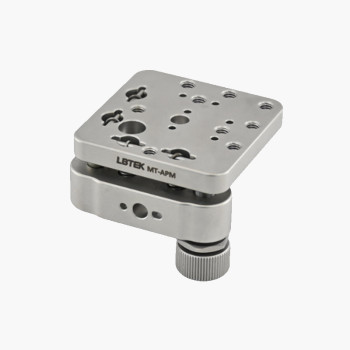

LBTEK Stainless Steel Platform Mount body made of 316L stainless steel, heat-treated and stress-relieved, featuring low thermal expansion and long-term stability. The platform surface is flat, allowing high-precision angle adjustment. It has 9 × M4 threaded holes arranged in an array; each through-hole and its adjacent threaded holes are equipped with two positioning pin holes for precise alignment using standard Ø2 mm (m6 tolerance) pins.
M6 × 0.25 adjuster screws with locknuts enable ±4° pitch and tilt adjustment, with 0.44°/rev resolution.
3 × M4 countersunk holes allow installation for left-hand, right-hand, or upward operation. Each countersunk hole is paired with positioning pin holes for precise alignment of larger optical components.
Removable knobs: once removed, adjustment can be done with the supplied HWS-2 2.0 mm hex wrench with knob, or a standard 2.0 mm hex wrench, making it convenient for use in narrow or confined spaces.
