| Coad | 667822 | Type | Low-profile Magnetic Base | |
| Dimension(mm) | 65.0 x 65.0 x 20.0 | Material | Q235B / Copper / Aluminum Alloy 6061-T6 | |
| Mounting Hole Specifications | M3 / M6 | Surface Treatment | QPQ | |
| Thickness | - | Number of magnets | - | |
| Stage platform size | - | Thread hole specification | - | |
| Holding force | 196N | Extension length | - | |
| Perpendicularity of mounting surface | - | Weight | 0.198kg | |
| Accessories Included | - | |||

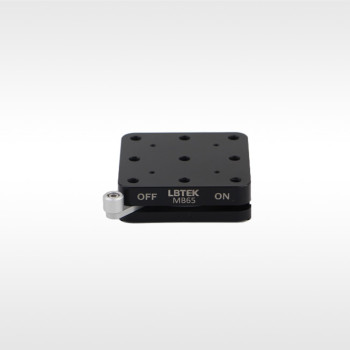

The LBTEK low-profile magnetic base features a magnetic switch that allows the magnetism to be turned on or off at any time. It can be directly fixed onto stainless steel optical tables or removed when no longer needed. The platform size is 65 × 65 mm, with nine M6 threaded holes spaced 25 mm apart, enabling easy placement of table-top system components and subassemblies at any position on the optical table. The MB65 shares the same hole pattern as our manual translation stages, and with a height of only 20 mm, it can serve as a supplement to manual translation stages for building experimental setups.
The LBTEK low-profile magnetic base features a magnetic switch that allows the magnetism to be turned on or off at any time. It can be directly fixed onto stainless steel optical tables or magnetic breadboards. The magnetic base platform includes nine M6 threaded holes and four M3 threaded holes, enabling flexible installation with manual translation stages or other mechanical components.
