| Coad | 667817 | Type | Right-Angle Bracket | |
| Dimension(mm) | 51.0 x 51.0 x 19.0 | Material | 6061-T10 Aluminum Alloy | |
| Mounting Hole Specifications | 1 M6 Countersunk Slot, 3 M6 Threaded Holes | Surface Treatment | Black Anodizing | |
| Thickness | - | Number of magnets | - | |
| Stage platform size | - | Thread hole specification | - | |
| Holding force | - | Extension length | 51.0mm | |
| Perpendicularity of mounting surface | 0.03mm | Weight | - | |
| Accessories Included | M6 Socket Head Cap Screw ×2 | |||
In addition to standard solid aluminum optical breadboards, LBTEK also provides a variety of breadboard accessories, including breadboard handles, vertical mounting bases, right-angle adapter plates, and vibration-isolating rubber bases. These accessories allow users to install and use breadboards more flexibly. Beyond standard sizes, custom breadboards with different dimensions, shapes, and hole patterns are also available. Please contact us if needed.

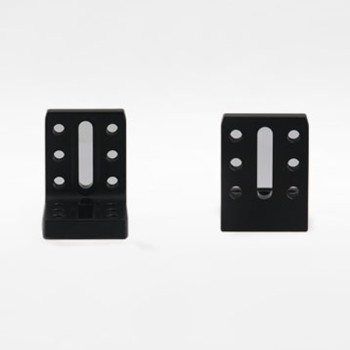

The LBTEK right-angle adapter plate features M6 countersunk slots and M6 threaded holes, designed for fixing and adapting mechanical components. It is machined from a single block of aluminum, ensuring high precision and rigidity. Purchase of the LBTEK RAP-90A right-angle adapter plate includes two M6 socket head cap screws.
