| Coad | 667811 | Type | Magnetic Quick-Release Mount | |
| Dimension(mm) | 75.0 x 75.0 | Material | 6061-T6 Aluminum Alloy | |
| Mounting Hole Specifications | M6 | Surface Treatment | Black Anodizing | |
| Thickness | 25.0mm | Number of magnets | - | |
| Stage platform size | - | Thread hole specification | - | |
| Holding force | - | Extension length | - | |
| Perpendicularity of mounting surface | - | Weight | - | |
| Accessories Included | M6.0 x 10 Socket Head Cap Screw ×4 | |||
Traders City price 90.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
The magnetic quick-release bases provided by LBTEK are available in three platform sizes: 25 mm × 25 mm, 50 mm × 50 mm, and 75 mm × 75 mm. The product uses strong magnets for connection, making assembly and disassembly extremely convenient. The interface between the top plate and base plate adopts a ball-and-V-groove design, ensuring good repeatability in positioning. A triangle is marked on the top plate to indicate the high-load area.

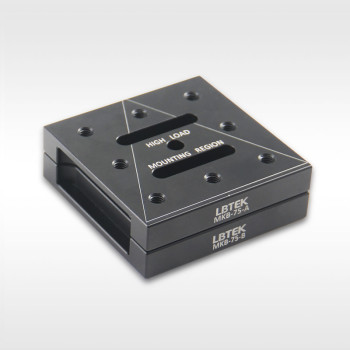

The LBTEK 75 mm magnetic quick-release base has a platform size of 75 mm × 75 mm. The interface between the top plate and the base plate adopts a ball-and-V-groove design, ensuring good repeatability in positioning. A triangle is marked on the top plate to indicate the high-load area.
