| Coad | 667808 | Type | Magnetic Quick-Release Mount | |
| Dimension(mm) | 50.0 x 50.0 | Material | 6061-T6 Aluminum Alloy | |
| Mounting Hole Specifications | M6 | Surface Treatment | Black Anodizing | |
| Thickness | 24.9mm | Number of magnets | - | |
| Stage platform size | - | Thread hole specification | - | |
| Holding force | - | Extension length | - | |
| Perpendicularity of mounting surface | - | Weight | - | |
| Accessories Included | M6.0 x 10 Socket Head Cap Screw ×2 | |||
The magnetic quick-release bases provided by LBTEK are available in three platform sizes: 25 mm × 25 mm, 50 mm × 50 mm, and 75 mm × 75 mm. The product uses strong magnets for connection, making assembly and disassembly extremely convenient. The interface between the top plate and base plate adopts a ball-and-V-groove design, ensuring good repeatability in positioning. A triangle is marked on the top plate to indicate the high-load area.

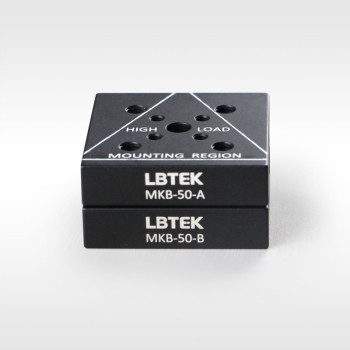

The LBTEK 50 mm magnetic quick-release base has a platform size of 50 mm × 50 mm. The interface between the top plate and the base plate adopts a ball-and-V-groove design, ensuring good repeatability in positioning. Two pairs of strong magnets provide a robust magnetic holding force. One edge of both the top and base plates is recessed for easy handling, reducing the risk of pinching fingers when the plates are coupled. In addition, a triangle is marked on the top plate to indicate the high-load area of the product.
