| Coad | 667805 | Type | Magnetic Quick-Release Mount Base Plate | |
| Dimension(mm) | 25.0 x 25.0 | Material | 6061-T6 Aluminum Alloy | |
| Mounting Hole Specifications | M4 | Surface Treatment | Black Anodizing | |
| Thickness | 6.1mm | Number of magnets | - | |
| Stage platform size | - | Thread hole specification | - | |
| Holding force | - | Extension length | - | |
| Perpendicularity of mounting surface | - | Weight | - | |
| Accessories Included | M4.0 x 10 Socket Head Cap Screw ×1 | |||

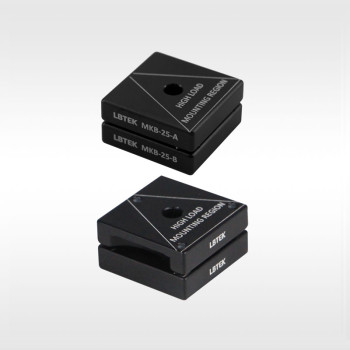

The magnetic quick-release bases provided by LBTEK are available in three platform sizes: 25 mm × 25 mm, 50 mm × 50 mm, and 75 mm × 75 mm. The product uses strong magnets for connection, making assembly and disassembly extremely convenient. The interface between the top plate and base plate adopts a ball-and-V-groove design, ensuring good repeatability in positioning. A triangle is marked on the top plate to indicate the high-load area.
The LBTEK low-profile magnetic base features a magnetic switch that allows the magnetism to be turned on or off at any time. It can be directly fixed onto stainless steel optical tables or magnetic breadboards. The magnetic base platform comes with nine M6 threaded holes and four M3 threaded holes, enabling flexible installation with manual translation stages or other mechanical components.
