| Code | 667681 | Type | 1-inch Stainless Steel Optical Mount | |
| Thickness | 2.0mm | Material | 316L stainless steel | |
| Surface treatment | Sandblasted | Applicable adjuster specification | M6×0.25mm |
Traders City price 5.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Locking nut ensures long-term stability of the adjuster
Thickness: 2.0 mm
Adjustable with a 13 mm hex wrench

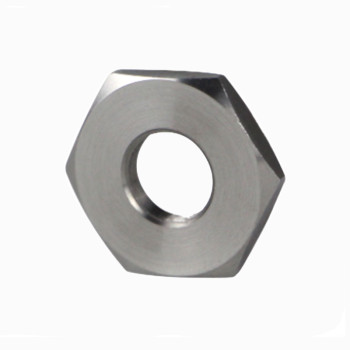

The LBTEK M6×0.25 mm locking nut is designed for use with all adjusters with M6×0.25 mm threads. It ensures long-term stability for the mounting frame and provides resistance to shock and vibration. The locking nut is versatile and can be easily tightened by hand (torque around 0.03-0.06 N·m) for applications requiring frequent adjustments. For long-term stability, use the MT-TW13 torque wrench, which can tighten up to 0.23 N·m.
Note: To avoid cross-threading the locking nut, place it next to the adjuster, rotate the locking nut until you feel a slight click, then screw it into the adjuster.
