| Code | 667638 | Type | Zoom Sleeve | |
| Surface treatment | Black anodizing | Center through hole size | Ø1.5mm | |
| Offset of small hole relative to fixed lens holder/lens tube center | Ø0.04mm | Applicable wavelength range | 700nm - 1600nm | |
| Start-up light power density (fluorescent light) | 3.82μW/mm² @ 980nm; 65μW/mm² @ 1550nm | Start-up light power density (dark environment) | 0.85μW/mm² @ 980nm; 5.7μW/mm² @ 1550nm | |
| Coating material |
Up-conversion fluorescent material |
Base material | 6061-T6 aluminum alloy |
Traders City price 31.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Center Ø1.5 mm through hole
Offset of small hole relative to fixed lens holder/lens tube center: ±0.04 mm
Wavelength range: 700 nm - 1600 nm
Coating material: Up-conversion fluorescent material

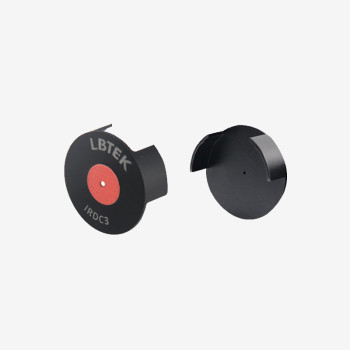

The LBTEK Near-Infrared Laser Alignment Disk IRDC3 features a circular infrared-visible coating with a diameter of Ø13 mm, used for determining the position of the near-infrared beam. The Ø1.5 mm center through hole is used to align the beam. After aligning the beam, the alignment disk can be removed without interfering with the optical path, and it can be placed back into approximately the same position later. The IRDC3 laser alignment disk is compatible with LBTEK's Ø25.4 mm fixed lens holders or Ø25.4 mm lens tubes.
