| Coad | 667637 | Substrate | UVFS | |

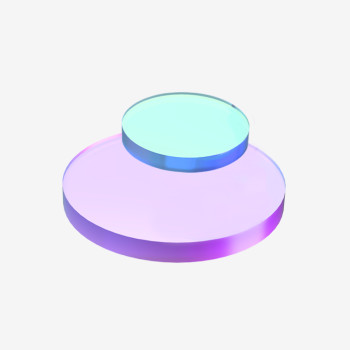

| Type | UV/Visible Chirped Mirror | Polarization | - | |
| Dimension(mm) | 25.4 x 6.0 | Clear Aperture | >90% | |
| Diameter | 25.4mm +0/-0.1mm | Surface Quality S1 | 20-10 S-D per CA | |
| Thickness | 6.0mm +0/-0.2mm | Surface Quality S2 | 60-40 S-D (polished) | |
| Wavelength(nm) | 980 - 1080 | Surface Flatness | <λ/6 @ 633 nm per CA | |
| Central Wavelength | - | Laser Damage Threshold | >200 mJ/cm2, 50 fs, S-on-1 | |
| GDD(fs²) | -25 | Coating Type | IBS Coating | |

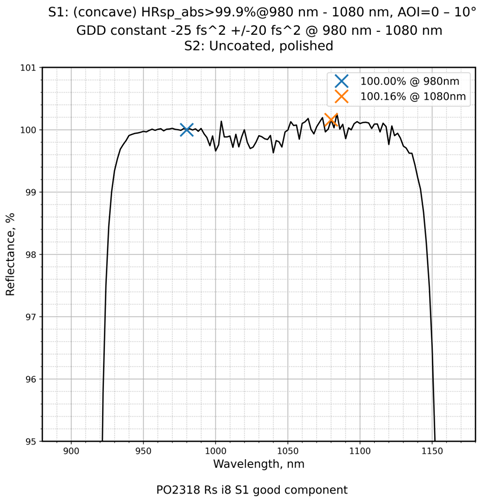

| AOI(°) | 0 - 10 | Coating Specifications | S1:HRsp_abs>99.9%@980 nm - 1080 nm / S2:Uncoated |
Traders City price 625.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
