| Coad | 667625 | Substrate | UVFS | |
| Type | UV/Visible Chirped Mirror | Polarization | - | |
| Dimension(mm) | 50.8 x 9.52 | Clear Aperture | ≥45mm | |
| Diameter | 50.8mm +0/-0.1mm | Surface Quality S1 | 20-10 S-D over CA MIL-PRF-13830B | |
| Thickness | 9.52mm +0/-0.1mm | Surface Quality S2 | Commercial polish (80-50 S-D) | |
| Wavelength(nm) | 700 - 1100 | Surface Flatness | <λ/8 @ 633 nm per Dia20 mm | |
| Central Wavelength | - | Laser Damage Threshold | >1 mJ/cm2, 10 fs, 1030 nm | |
| GDD(fs²) | 100 | Coating Type | IBS Coating | |

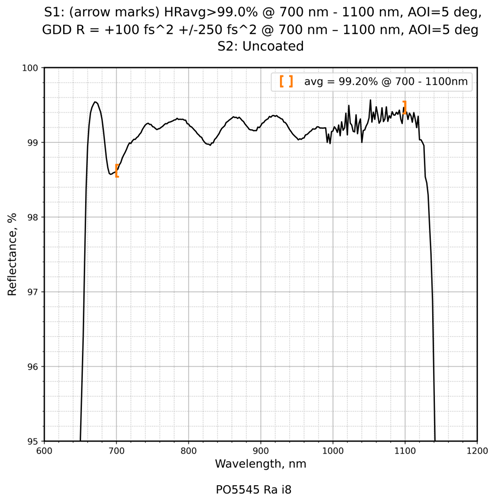

| AOI(°) | 5 | Coating Specifications | S1:HRavg>99.0% @ 700 nm - 1100 nm / S2:Uncoated |
Traders City price 1339.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
