| Coad | 667620 | Substrate | UVFS | |

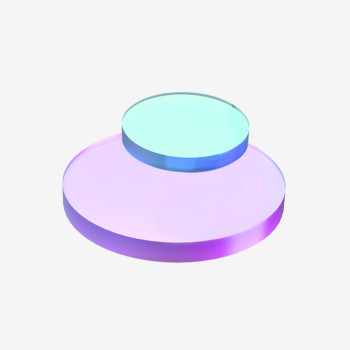

| Type | UV/Visible Chirped Mirror | Polarization | P | |
| Dimension(mm) | 12.7 x 6.35 | Clear Aperture | - | |
| Diameter | 12.7mm | Surface Quality S1 | - | |
| Thickness | 6.35mm | Surface Quality S2 | - | |
| Wavelength(nm) | 600 - 1200 | Surface Flatness | - | |
| Central Wavelength | 900nm | Laser Damage Threshold | - | |

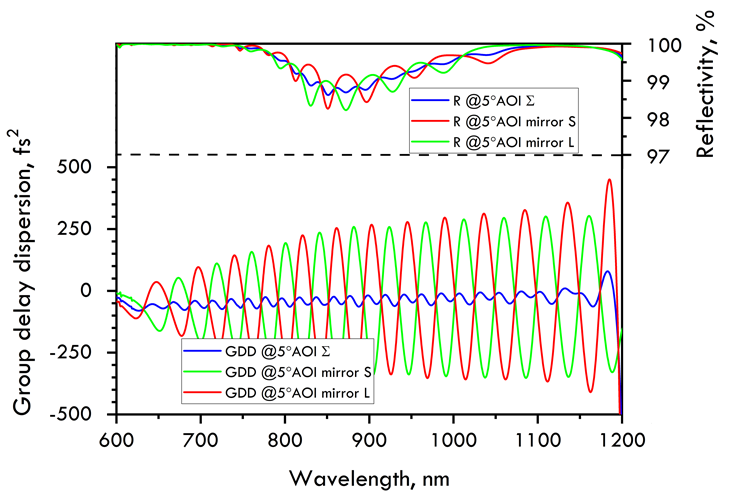

| GDD(fs²) | -50 | Coating Type | Dielectric Coating | |
| AOI(°) | 5 | Coating Specifications | R>98.5%@600-1200nm |
Traders City price 1673.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
